Technical Data
|
|||
|

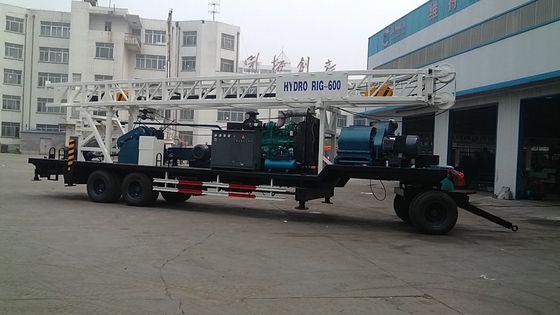

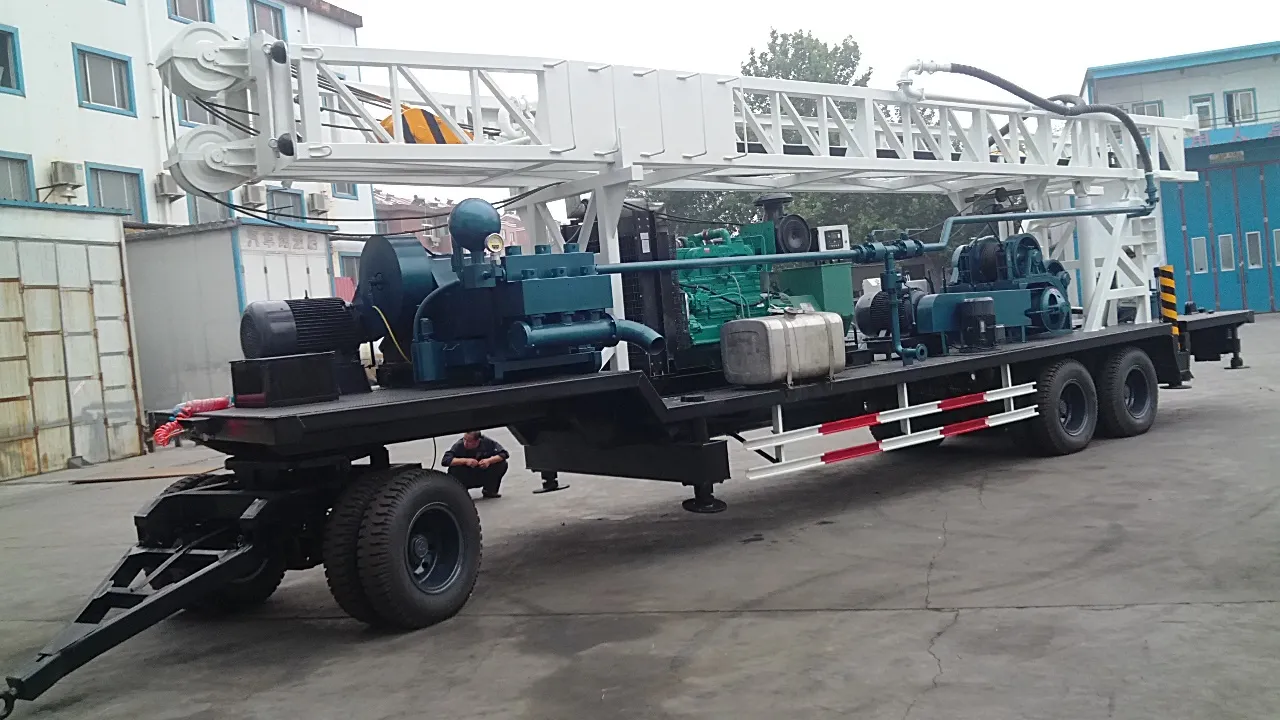

Model of drilling rig
|
T-600
|
||
|
Drilling depth
|
600m
|
||
|
Diameter of hole
|
200-500mm
|
||
|
Diameter of rotary table thru hole
|
500mm
|
||
|
Max Torque for rotary table
|
20 KN.M
|
||
|
Speed of rotary table
|
50,80,150r/min
|
||
|
Capacity with single rope of winch
|
Main winch
|
4 Ton
|
|
|
Vice winch
|
3 Ton
|
||
|
The capacity for main winch
|
24 ton
|
||
|
The capacity for vice winch
|
12ton
|
||
|
Kelly pipe
|
108*108*10500mm
|
||
|
drilling pipe
|
89*10*9000mm
|
||
|
The max load of mast
|
36 Ton
|
||
|
Effective height of mast
|
14.5m
|
||
|
Input power for rig
|
55Kw
|
||
|
Mud pump
|
Liner Diameter (mm)
|
100 110 120 130 140
|
|
|
Stroke of piston (mm)
|
160
|
||
|
Theoretical flow (L / S)
|
8.4 ;10.3; 12.2;14.3; 16.6
|
||
|
Rated pressure (Mpa)
|
10 8 7 6 5
|
||
|
Diameter of suction tube
|
152mm
|
||
|
Diameter of discharge pipe
|
65mm
|
||
|
Input power kW(HP)
|
95 (130)
|
||
|
Gear pumps
|
Model
|
CB-E532F
|
|
|
Displacement(ml/r)
|
30
|
||
|
Rated pressure(Mpa)
|
20
|
||
|
Max pressure(Mpa)
|
25
|
||
|
Motor power
|
11Kw
|
||
|
Power
|
Model
|
generator Set
|
|
|
Diesel engine
|
CUMMINS-315 Hp
|
||
|
Transport size (L*W*H)
|
16650*2500*4200mm
|
||
