China Factory 400m Drilling Depth Borehole DTH Water Well Drill/Drilling Rig6

1
MOQ
negotiable
giá bán
China Factory 400m Drilling Depth Borehole DTH Water Well Drill/Drilling Rig6
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông số kỹ thuật
Tên: Máy khoan/máy khoan giếng nước loại bánh xích GL400S cho độ sâu khoan 400M và đường kính lỗ 105-350m
Từ khóa: Máy khoan giếng nước bánh xích/Giàn khoan
Độ sâu: 400m
Đường kính lỗ: 105-350mm
Trình thu thập thông tin: bánh xích thép
kích thước vận chuyển: 5,4m X 1,7m X 2,35m
Trọng lượng của giàn khoan: 9,2T
Động cơ Diesel: Xi lanh 90KW-6
Làm nổi bật:

400m drilling depth water well drill

,

DTH borehole drilling rig

,

water well drilling rig with warranty

Thông tin cơ bản
Nguồn gốc: Trung Quốc
Hàng hiệu: Glorytek
Chứng nhận: CE
Số mô hình: GL400S
Thanh toán
chi tiết đóng gói: Bao bì xuất khẩu tiêu chuẩn
Thời gian giao hàng: 20 ngày
Điều khoản thanh toán: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Khả năng cung cấp: 20Sets/tháng
Mô tả sản phẩm

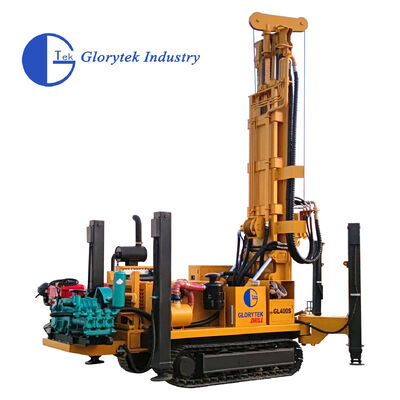

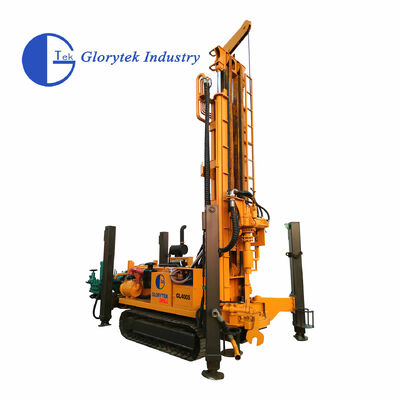

GL400S 400M Steel Crawler Water Well Borehole Drilling Rig With 92KW Diesel Engine



Description:



GL-400S drilling rig is a crawler drilling rig independently researched and developed by our company.

It is a medium-sized, efficient and multi-functional drilling equipment integrating the functions of water drilling and air drilling.

It is mainly used for core drilling of large and small diameters based on alloy bits and diamond bits, as well as well holes for engineering geological surveys, hydrology, water wells, agricultural irrigation wells and other purposes, especially suitable for water intake projects in mountainous areas and rock formations.



Tehnical Parameter:

Item
Specification
Drilling depth (m)
400
Drilling diameter(mm)
105-350
Air pressure (Mpa)
1.25-3.5
Air consumption(m³/min)
16-55
Rod length (m)
3.0 6.0
Rod diameter(mm)
φ76 φ89 φ102 φ114
Main shaft pressure (T)
6
Lifting force (T)
28
Total swing stroke(M)
6.6
 Rotary torque(N.m)
10000
Rotary speed (r/min)
30/170
Winch lifting force (T)
3
High leg stroke(M)
1.5
Moving speed(km/h)
2.5
Climbing ability(°)
21°
Weight of the rig(T)
9.2
Dimensions(M)
5.4m x 1.7m x 2.35m
Diesel engine(kw)
90KW-6 Cylinders
Working condition
Loose layer and bedrock
Drilling method
Suitable hammer
Medium and high pressure DTH hammer
Optional accessories
Mud pump,Centrifugal pump,generator, foam pump,




Related products



China Factory 400m Drilling Depth Borehole DTH Water Well Drill/Drilling Rig6 0


Customer Visting

China Factory 400m Drilling Depth Borehole DTH Water Well Drill/Drilling Rig6 1

Company Profile

China Factory 400m Drilling Depth Borehole DTH Water Well Drill/Drilling Rig6 2

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.





FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.


Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.


Q: What is your payment terms?
A: We can accept T/T,L/C.


Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.


Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).


Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
