ROCK DRILLING RIG

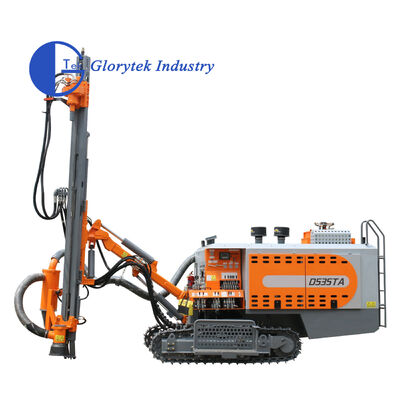

The D535TA integrated down-the-hole drill is an upgrade on the basisof well-proven models, and the core hydraulic components are from internationally renowned brands. With the single-powered screw air compressor and hydraulic system, and the power output at peaks shift design,comparing with separate drill arrangement, the total power of the diesel engine is reduced by about 30%, and the maintenance cost is reduced by50%.The integrated design of the D535TA solves the problems of air compressor transportation, air pressure pipeline loss and remote management, and improves productivity.
Technical Parameter
|
Air working pressure:
|
18 bar
|
|
Air flow FAD:
|
12 m³ / min
|
|
Hole range:
|
Φ90 - 127 mm
|
|
Drill pipe size:
|
Φ60 mm
|
|
Drill pipe handling capacity:
|
7
|
|
Hole depth:
|
21 m
|
|
Feed total length:
|
5,500 mm
|
|
Feed extension:
|
970 mm
|
|
Feed force:
|
7.5 kN
|
|
Tramming speed.Max:
|
3.2 km/h
|
|
Hill climbing ability:
|
25°
|
|
Fuel tank capacity:
|
250 L
|
|
Carrier ground clearance:
|
340 mm
|
|
Track frame oscillation angle:
|
+/-10°
|
|
DTH hammer:
|
3.5 inch
|
|
Rotation torque:
|
1,500 Nm
|
|
Drill pipe length:
|
3,000 mm
|
|
Feeding:
|
Hydraulic cylinder - chain
|
|
Feed travel length:
|
3,680 mm
|
|
Feed rate max.:
|
0.5 m/s
|
|
Pull up force:
|
15.5 kN
|
|
Traction force:
|
96 kN
|
|
Weight(Options excluded):
|
7,250 kg
|
