ROCK DRILLING RIG

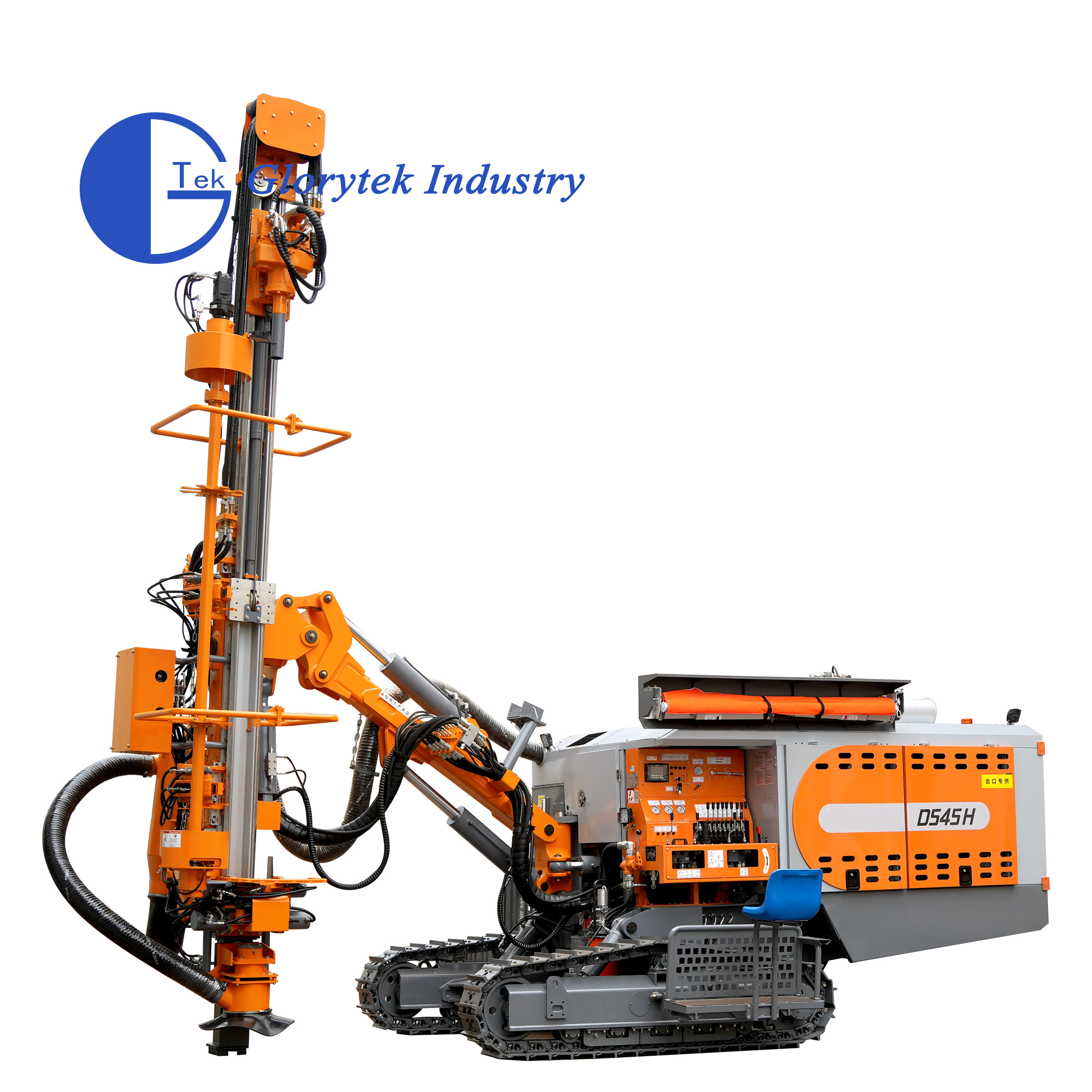

The D545 integrated down-the-hole drill is an upgrade on the basis of well-proven models, and the core hydrauliccomponents are from internationally renowned brands. With thesingle-powered screw air compressor and hydraulic system, and the poweroutput at peaks shift design, comparing with separate drill arrangement,the total power of the diesel engine is reduced by about 30%, and themaintenance cost is reduced by 50%.The integrated design of the D545 solves the problems of air compressor transportation, air pressure pipelineloss and remote management, and improves productivity.
Technical Parameter
|
Air working pressure:
|
18 bar
|
|
Air flow FAD:
|
17 m³ / min
|
|
Hole range:
|
Φ90 - 130 mm
|
|
Drill pipe size:
|
Φ68/76 mm
|
|
Drill pipe handling capacity:
|
7
|
|
Hole depth:
|
24 m
|
|
Feed total length:
|
6,100 mm
|
|
Feed extension:
|
1,220 mm
|
|
Feed force:
|
13 kN
|
|
Tramming speed.Max:
|
3.3km/h
|
|
Hill climbing ability:
|
25°
|
|
Fuel tank capacity:
|
300 L
|
|
Carrier ground clearance:
|
340 mm
|
|
Track frame oscillation angle:
|
+/-10°
|
|
DTH hammer:
|
3.5/4 inch
|
|
Rotation torque:
|
1,900 Nm
|
|
Drill pipe length:
|
3,000 mm
|
|
Feeding:
|
Hydraulic cylinder+rope /Hydraulic cylinder+ chain
|
|
Feed travel length:
|
3,400 mm
|
|
Feed rate max.:
|
0.88 m/s
|
|
Pull up force:
|
16.5 kN
|
|
Traction force:
|
119 kN
|
|
Weight(Options excluded):
|
10,000 kg
|
