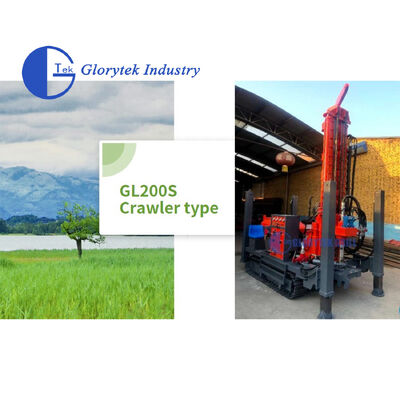

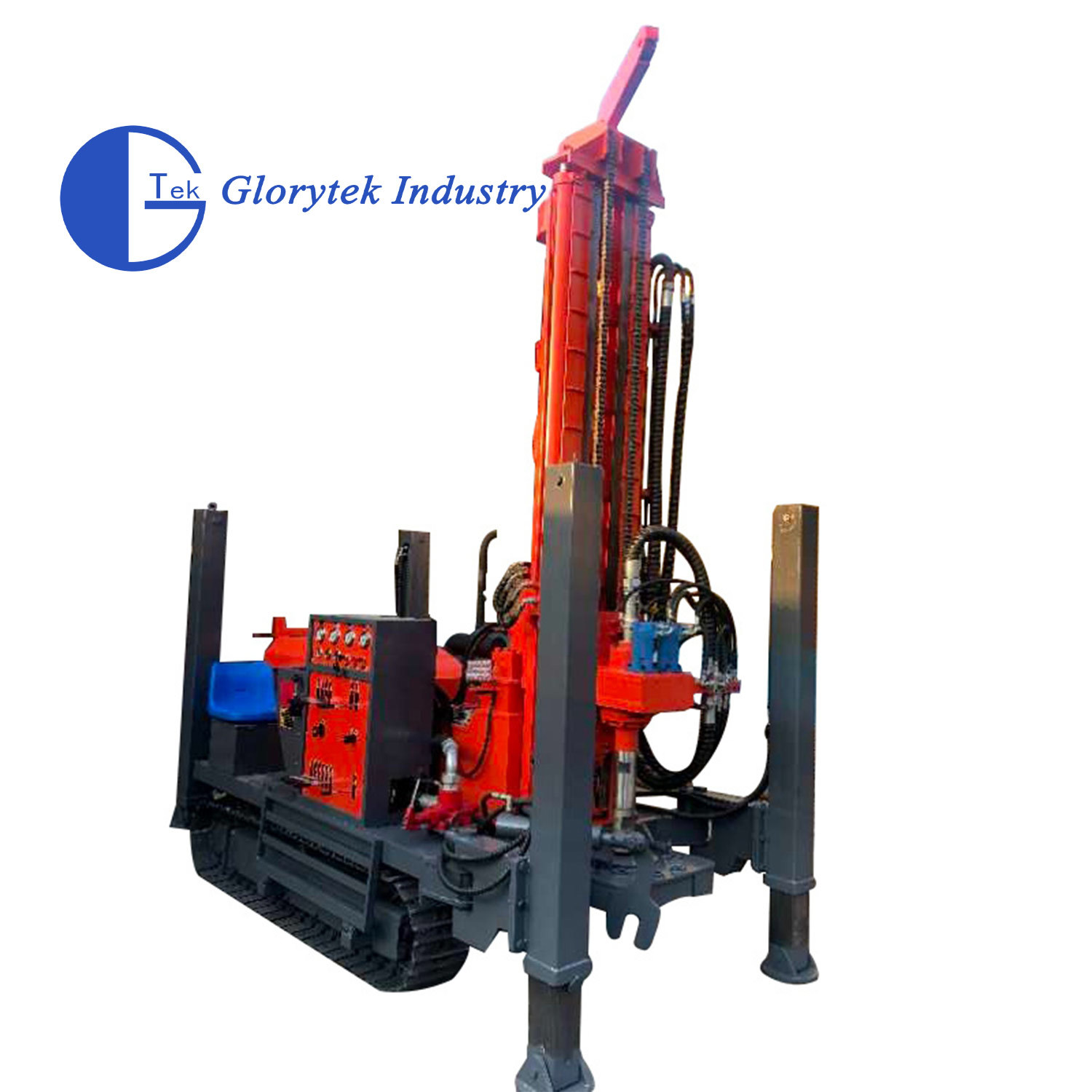

The GL200S Fully Hydraulic 200m Borehole Drill Rig Machines are no problem to drill 200m deep, hole diameter 105-300mm. It is mainly suitable for air percussion drilling, but also can be equipped with mud pump for mud rotary drilling.

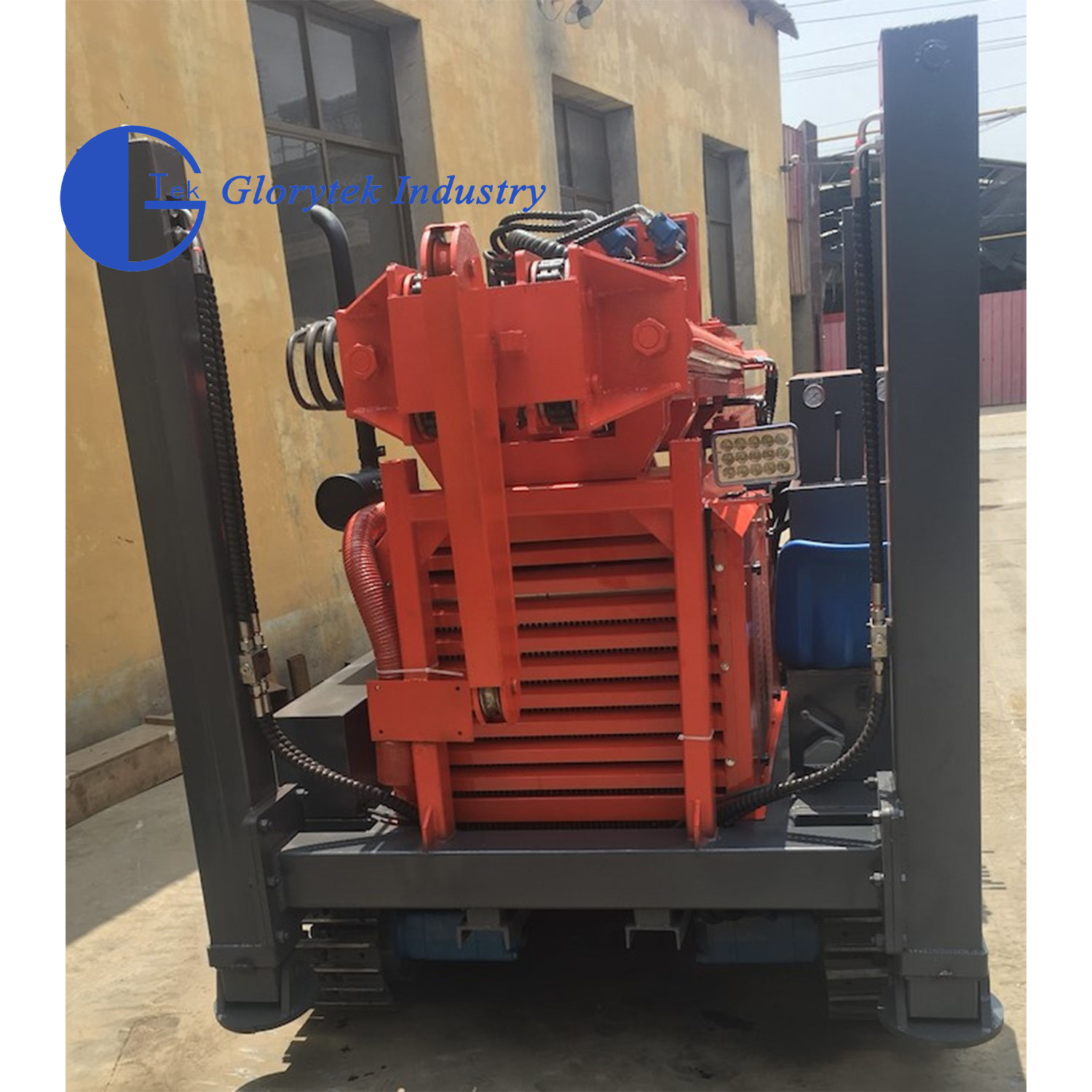

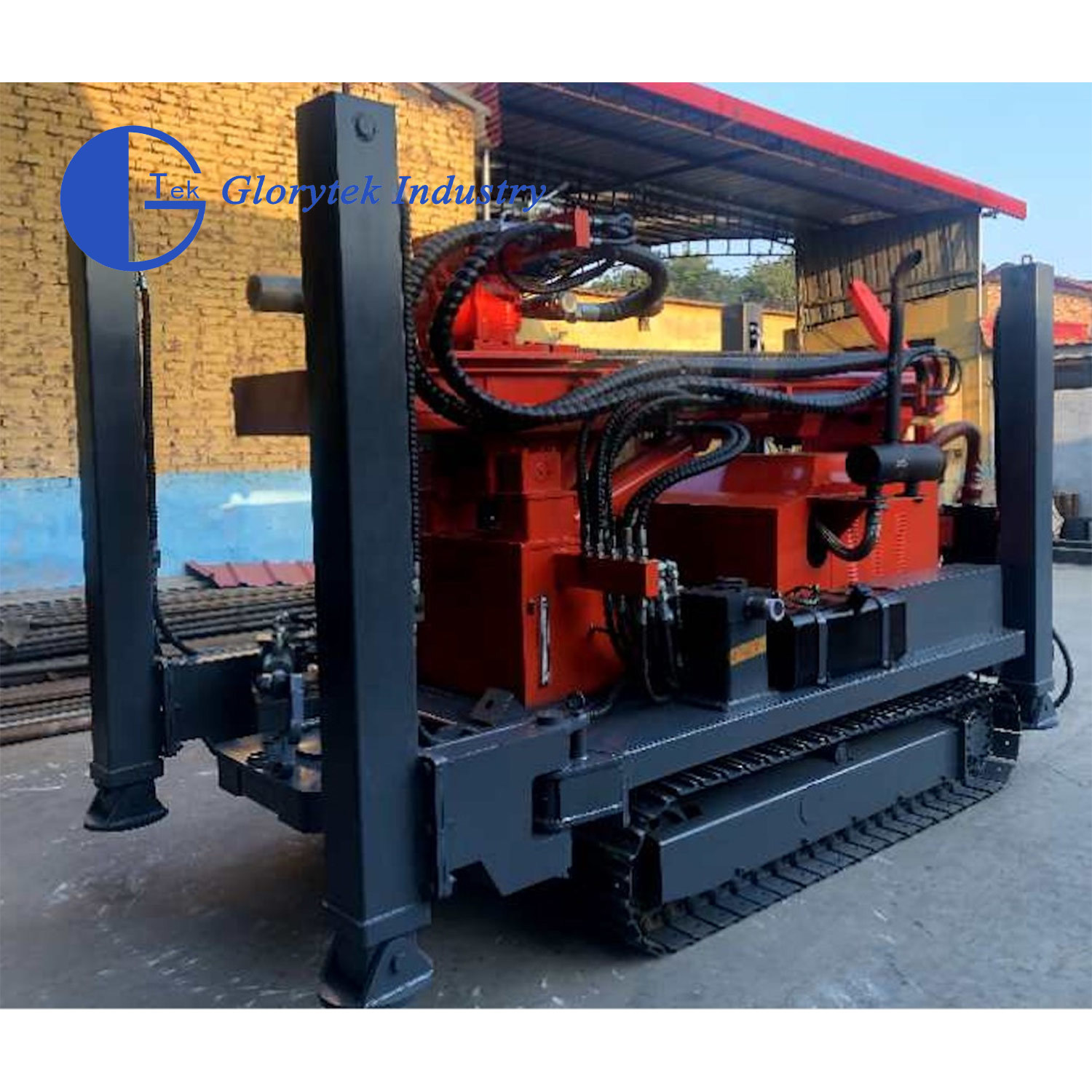

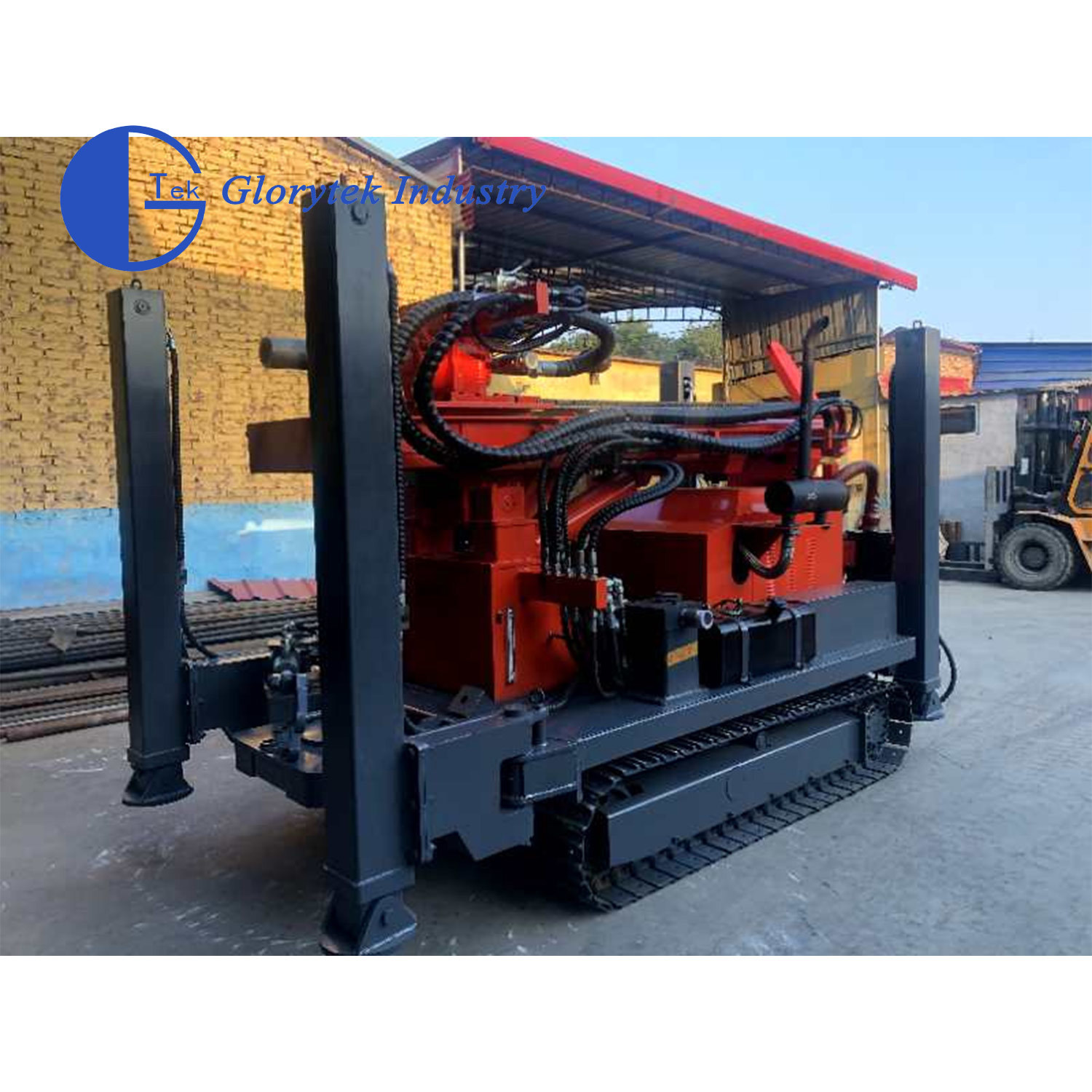

We equip steel crawler chassis for this model to make it easy to move. And the hydraulic supporting legs make it easy to load and unload. This machine is widely used for water well drilling, geothermal well drilling, civil drilling, etc. Welcome your contact to discuss more information.
| Technical Parameter | |
|---|---|
| Max drilling depth | 200m |
| Drilling diameter | 105-300mm |
| Air pressure | 1.25-3.5Mpa |
| Air consumption | 16-55m³/min |
| Rod length | 3m |
| Rod diameter | 76/89mm |
| Main shaft pressure | 4T |
| Lifting force | 16T |
| Fast lifting speed | 20m/min |
| Fast forwarding speed | 40m/min |
| Rotary torque | 6500 N.M |
| Rotary speed | 30/120r/min |
| Winch lifting force | 1.5T |
| High leg stroke | 1.35-1.5m |
| Drilling efficiency | 10-35m/h |
| Moving speed | 2.5Km/h |
| Uphill angle | 21° |
| Weight of the rig | 5.5T |
| Dimension | 3.9m x 1.8m x 2.3m |
| Working condition | loose layer or bedding rock |
| Drilling method |
Top Hammer Hydraulic Rotating and feeding, Down the hole hammer or mud pump drilling |
| Suitable hammer | Medium and high pressure DTH hammer |

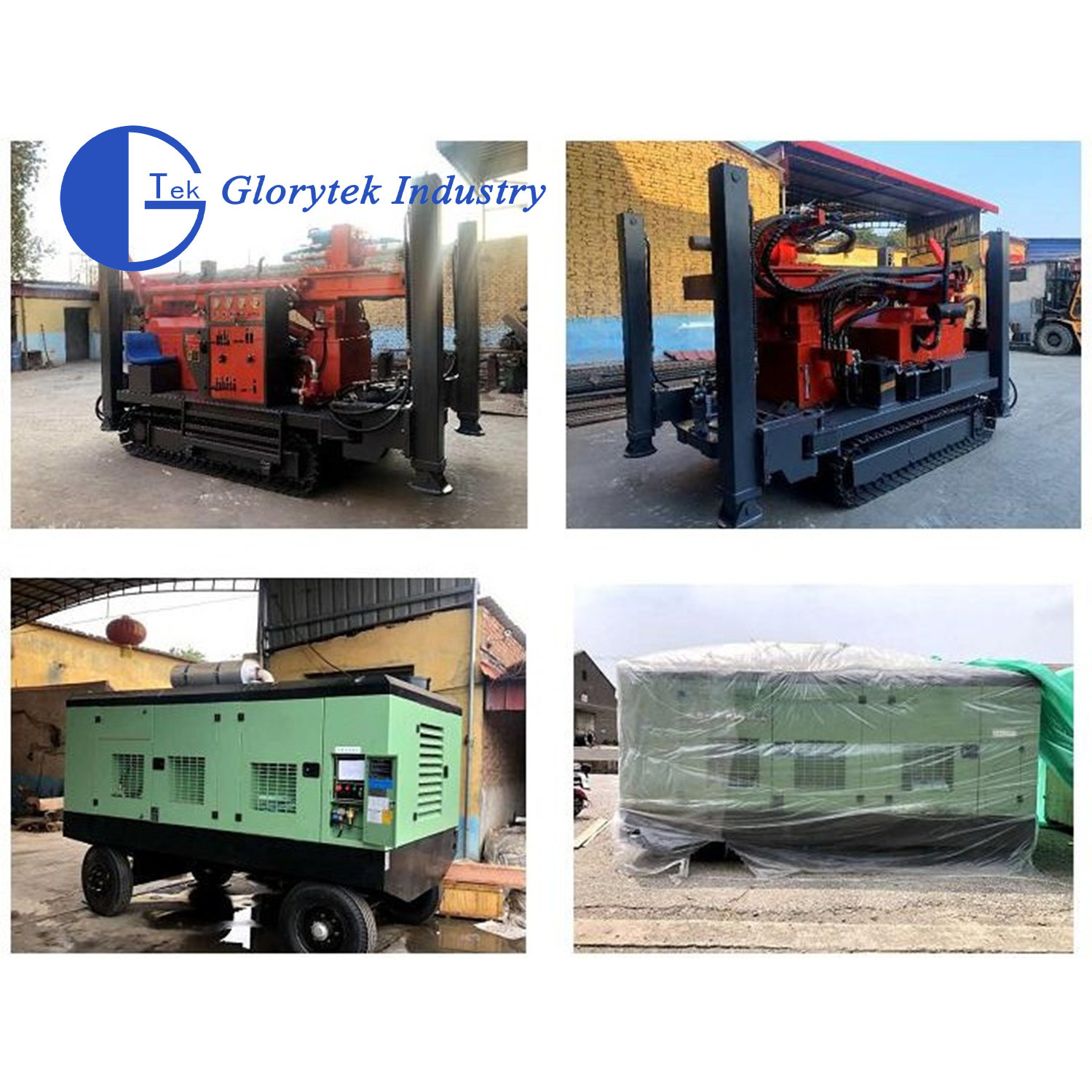

| Optional accessories | Mud pump, centrifugal pump, generator, foam pump |
| Diesel Engine | 77KW |
Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
We have cooperative customers in more than 60 countries around the world. Our machines support their local engineering well.
